TX 1000 Turbo Narrow Track Compact Utility Loader

With vertical lift loader arms

Model #22587

The all-new Toro TX 1000 Turbo Narrow Track Compact Utility Loader is designed with vertical lift loader arms, its 454 kg rated operating capacity delivers category-crushing performance that’s an industry game-changer.

  • 206 cm Hinge Pin Height
  • Over 454 kg Rated Operating Capacity
  • Exclusive Traction Control Design

Overview

As the market leader, Toro has taken another giant step in innovation, performance and versatility with the TX 1000 Turbo Narrow Track Compact Utility Loader.

Designed with vertical lift loader arms, its 454 kg rated operating capacity delivers category-crushing performance that’s an industry game-changer. The TX 1000 Turbo Narrow Track Compact Utility Loader also offers increased reach at full height for maximum job site productivity. And speaking of productivity, an 206 cm hinge pin height allows the arms to clear the side of a 23 m² dumpster or 1000 kg truck. This lightweight, manoeuvrable machine packs unmatched strength and reach in a compact package for the ultimate working advantage.

Features

Toro Exclusive Vertical Lift Loader Arm Design

Toro exclusive vertical lift loader arms increases load capacity and greater reach at full height deliver even stronger performance.

206 cm Hinge Pin Height

206 cm hinge pin height allows attachments to easily clear the side of 23 m² dumpsters or 1,000 kg trucks.

Over 454 kg Rated Operating Capacity

Rated operating capacity over 454 kg allows the TX 1000 to lift more than any compact utility loader on the market.

Exclusive Traction Control Design

Exclusive patent-pending traction control design is intuitive, easy to operate, and effortless.

Dedicated Operating Platform

Dedicated operating platform with thigh and hip padding for increased operator comfort. Suspended platform has clear line of sight to the attachment plate, machine and jobsite for maximum visibility.

The All-New Toro TX 1000 Turbo Compact Utility Loader

Related accessories

4 in 1 Bucket
  • Standard bucket
  • Leveller
  • Grapple rake
  • Blade
Narrow Bucket
  • Narrow Width
  • Hardened Steel Cutting Edge
Standard Bucket
  • 0.1 m³ Capacity
  • Hardened Steel Cutting Edge
  • Optional Tooth Bar
High Volume Bucket
  • 0.2 Cubic Metre Capacity
  • Hardened Steel Cutting Edge

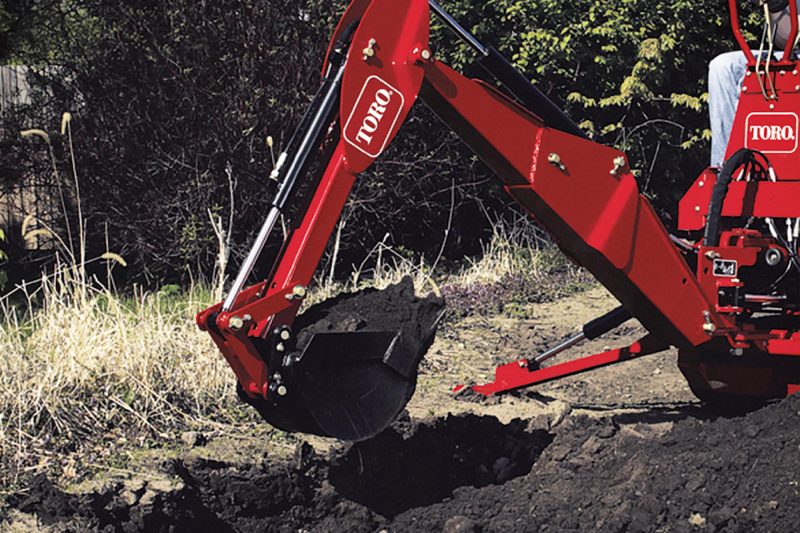

Backhoe with 13″ bucket
  • Transport height: 180 cm
  • Weight: 346 kg
  • Stabiliser spread: 198 cm
  • Bucket digging force: 1,110 kg
  • Crowd arm digging force: 566 kg
Adjustable Forks
  • Width: 91.4 cm
  • Weight: 110.7 kg
Bore drive head attachment
  • Boring Bit: 4.4 cm; Reamer: 6.3 cm
  • Drill rods (4): 2.2 cm diameter, by 1.5 m
  • Optional bits from 3.2 – 6.4 cm
  • Optional reamers up to 11.4 cm
Concrete breaker attachment
  • Delivers 244Nm of force
  • Up to 1250 blows per minute
Direct drive power box rake
  • Working width: 122 cm
  • Overall width: 170 cm
  • Overall height: 102 cm
  • Overall length: 66 cm
  • Weight: 231 kg
High torque trencher attachment
  • Torque: 900Nm at 3000 psi
  • Weight: 177 kg
High-speed trencher attachment
  • Torque: 600Nm at 3000 psi
  • Weight: 177 kg
Hydraulic blade attachment
  • Overall width: 122 cm
  • Overall height: 53 cm
  • Overall weight: 64 kg
Leveller attachment
  • Length: 85 cm
  • Width: 124 cm
  • Height: 40 cm
  • Weight: 70 kg
Multi-purpose tool
  • Ripper: 3 thick steel tines
  • Towbar: Accepts ball with 2.5 cm diameter threads
  • Boom and chain length 114 cm
Soil cultivator attachment
  • Working width: 91 cm
  • Overall width: 130 cm
  • Overall height: 53 cm
  • Overall length: 130 cm
  • Weight: 195 kg
Stump grinder attachment
  • Wheel diameter: 34 cm
  • Width: 112 cm with debris shield
Swivel auger power head attachment
  • Bit speed: 86 rpm at 11 gpm
  • Torque: 1300Nm at 3000psi at 11 gpm
  • Dig up to 2 metre holes
  • Bit length 106 cm; 60 cm and 30 cm extensions available
SWS Cement bowl
  • Diameter: 64 cm
  • Length: 46 cm
  • Weight: 34 kg
Tiller attachment
  • Tine speed: 226 rpm at 11 gpm
  • Overall width: 112 cm
  • Overall length: 51 cm
  • Height: 66 cm
  • Weight: 165 kg
Trench filler
  • Overall width: 157 cm
  • Working width: 122 cm
  • Auger diameter: 35.6 cm
Grapple Rake
  • 87.6 cm width guarantees access to tight areas
  • Tines constructed of 3/8" (1 cm) AR400 steel*
  • Four greaseable pivots reduce wear
Hydraulic Tree Forks
  • Powerful hydraulic arm
  • Forks open 76.2 cm wide
  • Pinpoint maneuverability
Vibratory Plow
  • Pulls pipe up to 46 cm deep
  • Optimises pipe-pulling performance
  • Elliptical vibrating motion
