W320-D Series II Compact Utility Loader

Effortless manoeuvrability

Model #22337CP

The Toro wheeled W320-D Series II Compact Utility Loader diesel compact utility loader is built to deliver a high power-to-weight ratio in the compact utility loader category.

  • Single 15 litre fuel tank
  • Heavy-duty air cleaner
  • 2 ground speeds

Special offer!

Get $5000 of the W320-D Series II*

Talk to your dealer now.

Terms and conditions apply. See offers page for more details

Overview

At only 104 cm wide and zero-turn capability, this compact utility loader can access confined spaces and its short length contributes to efficient trailering. The removable counterweight allows for added lift capacity or increased down pressure for optimal attachment performance. With 4 Paw® independent 4-wheel drive traction system, it’s sure on its feet in any environment, wet or dry. Toro’s wheeled compact utility loaders are without doubt built for Australia’s tough conditions.

  • Fuel efficient liquid-cooled 20 HP Kubota® Super-Mini Series diesel engine
  • More net horsepower improves traction and delivers added torque to attachments
  • Single 15 litre fuel tank
  • Heavy-duty air cleaner
  • 2-pump system with combined flow of 56.4 lpm at 3,600 rpm hydraulic power
  • 2 ground speeds
  • Ride on platform provides improved safety and visibility of working area and attachments
  • Hi flow electric cooling fan

Features

Powerful Kubota® engine

Fuel efficient liquid-cooled 20 HP Kubota® Super-Mini Series diesel engine. More net horsepower improves traction and delivers added torque to attachments

4-Paw® Independent 4-Wheel Drive

Directs hydraulic flow and pressure to all the wheels, at all times. You can power through the toughest conditions and reduce the likelihood of getting stuck. The 4-Paw® eliminates the use of chains – reducing maintenance and eliminating the chance of a broken chain.

2 Ground Speeds

Operator can select low or high speed ground speed. Low speed directs more hydraulic power to the attachment and high speed directs more power to the wheels. The low speed option also helps new operators shorten their learning curve.

Compact Size and Maneuverability

Get the Toro compact utility loader into tight spaces where only hand labor could go before. Add to the easy spin steer turning, and you’ll be able to power through the toughest jobs. This means landscape contractors can use the incredible power of the compact utility loader to save time and money on labour.

Fingertip Controls

Easy-to-reach 4-stick fingertip hand controls enable all functions from the operator position. The operator controls all movements of the machine and attachments with his fingertips.

2-Pump Hydraulic System

Independent power can be supplied to the attachment or the wheels. The 2-pump system with combined flow of 56.4 lpm at 3,600 rpm hydraulic power provides better usage of power to get the job done as well as not relying on one pump for shared power.

Quick Attach System

Each attachment is equipped with Toro’s unique Quick Attach System™ (QAS). The QAS makes changing attachments as simple as turning 2 levers.

Ride-On Platform

Ride-on platform provides improved safety and visibility of working area and attachments.

Related accessories

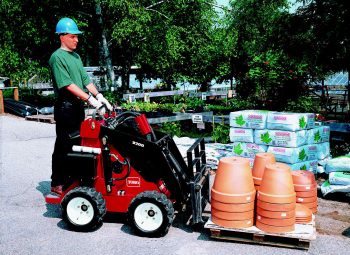

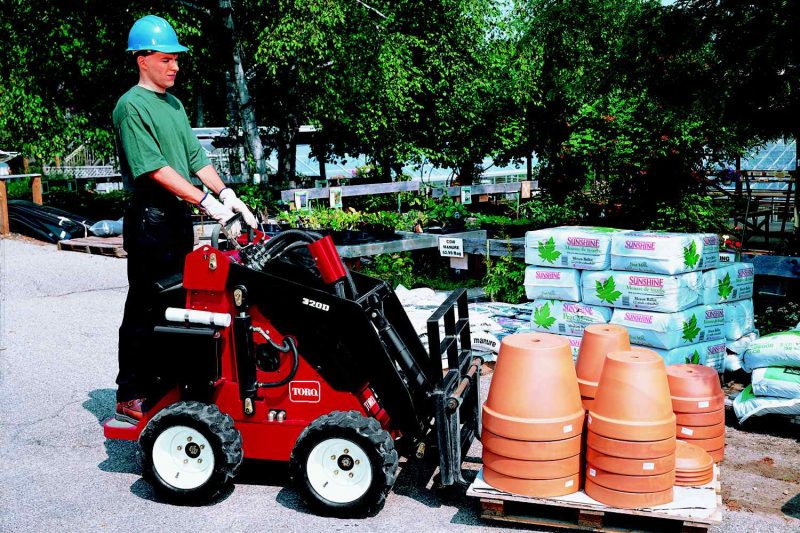

36″ adjustable forks
  • Lift capacity: 136 kg
  • Maximum lift height: 155 cm
  • Width: 80 cm
  • Weight: 74 kg
High torque trencher attachment
  • Torque: 900Nm at 3000 psi
  • Weight: 177 kg
Bore drive head attachment
  • Boring Bit: 4.4 cm; Reamer: 6.3 cm
  • Drill rods (4): 2.2 cm diameter, by 1.5 m
  • Optional bits from 3.2 – 6.4 cm
  • Optional reamers up to 11.4 cm
Concrete breaker attachment
  • Delivers 244Nm of force
  • Up to 1250 blows per minute
Direct drive power box rake
  • Working width: 122 cm
  • Overall width: 170 cm
  • Overall height: 102 cm
  • Overall length: 66 cm
  • Weight: 231 kg

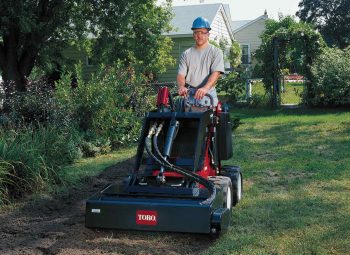

Tiller attachment
  • Tine speed: 226 rpm at 11 gpm
  • Overall width: 112 cm
  • Overall length: 51 cm
  • Height: 66 cm
  • Weight: 165 kg
Trench filler
  • Overall width: 157 cm
  • Working width: 122 cm
  • Auger diameter: 35.6 cm
SWS Cement bowl
  • Diameter: 64 cm
  • Length: 46 cm
  • Weight: 34 kg

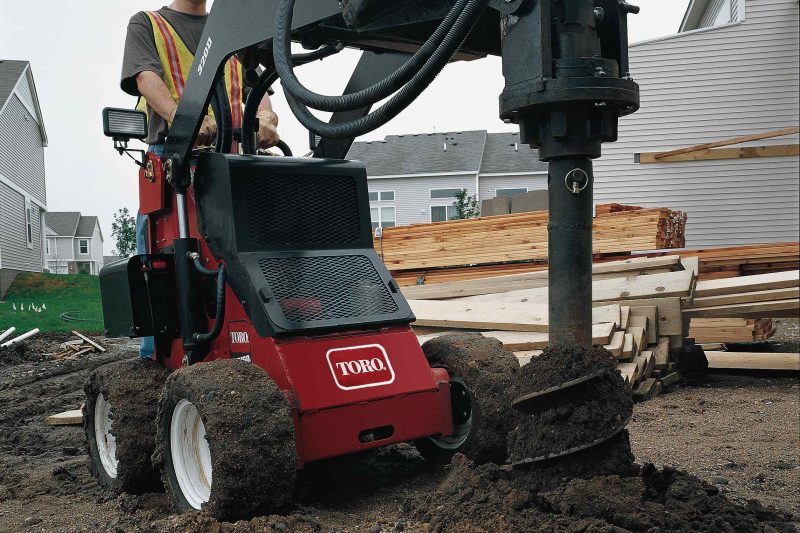

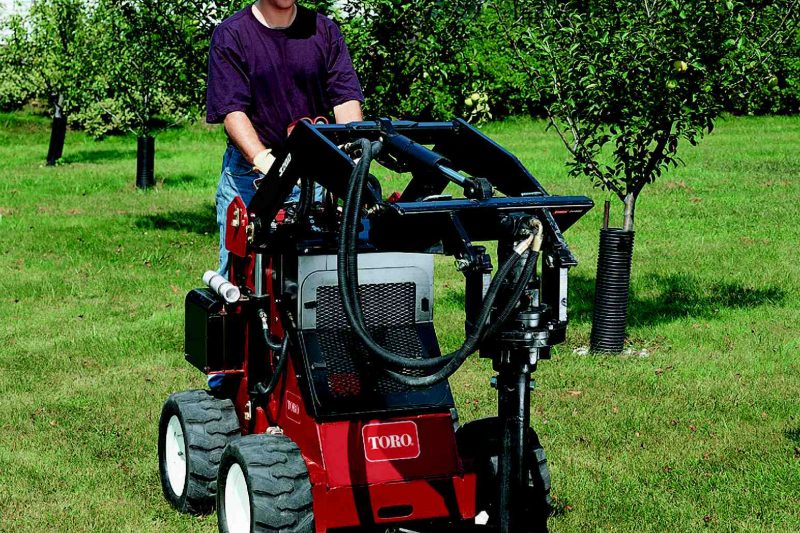

Swivel auger power head attachment
  • Bit speed: 86 rpm at 11 gpm
  • Torque: 1300Nm at 3000psi at 11 gpm
  • Dig up to 2 metre holes
  • Bit length 106 cm; 60 cm and 30 cm extensions available
Stump grinder attachment
  • Wheel diameter: 34 cm
  • Width: 112 cm with debris shield

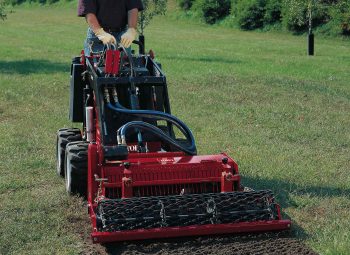

Soil cultivator attachment
  • Working width: 91 cm
  • Overall width: 130 cm
  • Overall height: 53 cm
  • Overall length: 130 cm
  • Weight: 195 kg
High-speed trencher attachment
  • Torque: 600Nm at 3000 psi
  • Weight: 177 kg
Hydraulic blade attachment
  • Overall width: 122 cm
  • Overall height: 53 cm
  • Overall weight: 64 kg
Leveller attachment
  • Length: 85 cm
  • Width: 124 cm
  • Height: 40 cm
  • Weight: 70 kg
Multi-purpose tool
  • Ripper: 3 thick steel tines
  • Towbar: Accepts ball with 2.5 cm diameter threads
  • Boom and chain length 114 cm
Backhoe with 13″ bucket
  • Transport height: 180 cm
  • Weight: 346 kg
  • Stabiliser spread: 198 cm
  • Bucket digging force: 1,110 kg
  • Crowd arm digging force: 566 kg
Hydraulic Tree Forks
  • Powerful hydraulic arm
  • Forks open 76.2 cm wide
  • Pinpoint maneuverability
Grapple Rake
  • 87.6 cm width guarantees access to tight areas
  • Tines constructed of 3/8" (1 cm) AR400 steel*
  • Four greaseable pivots reduce wear
High Volume Bucket
  • 0.2 Cubic Metre Capacity
  • Hardened Steel Cutting Edge
Narrow Bucket
  • Narrow Width
  • Hardened Steel Cutting Edge
Standard Bucket
  • 0.1 m³ Capacity
  • Hardened Steel Cutting Edge
  • Optional Tooth Bar
